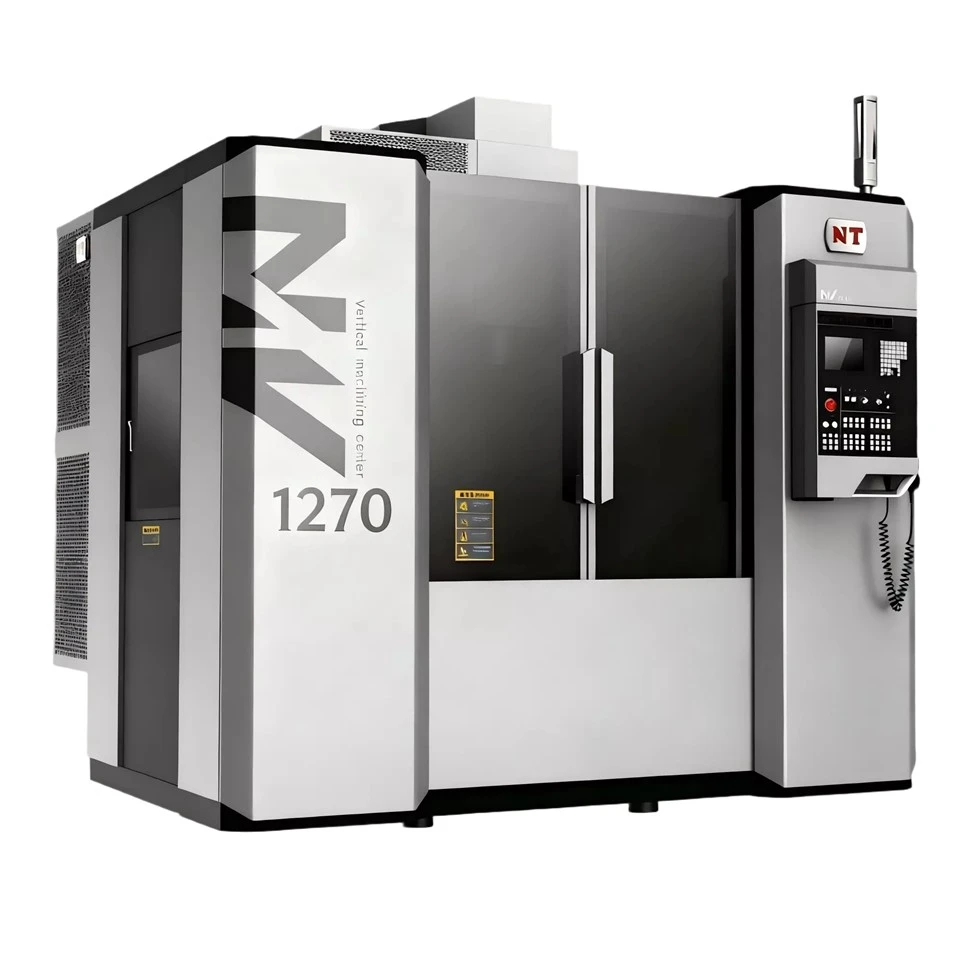

NV1270 Vertical Machining Center

The NV1270 Vertical Machining Center is independently developed by NT. It’s a multifunctional 5-axis vertical machining center for precision machining of medium and large molds and mechanical parts. Fitted with a 700mm swing diameter and a 2-axis rotary table, it can process workpieces that traditionally need 630mm-table horizontal machining centers. It realizes one-setup machining for complex parts, and cuts labor costs via automated integration. With lower equipment investment and multiple machining capacity, it stands as a highly cost-effective machining solution for manufacturers.

NV1270 Technical Data

Item	Unit	NV1270
Stroke(customizable)
X/Y/Z axis	mm	1250x700x700
Spindle nose to table	mm	150-850
Spindle center to column	mm	740
Table
Table size	mm	1400x700
Table load capacity	kg	1200
Spindle
Spindle type		BT40/BT50
Spindle max speed	rpm	10000/8000
Spindle power(BT40)	Kw	7.5/11
Spindle power(BT50)	Kw	15/18.5
Feedrate
X/Y/Z axes rapid	m/min	48/48/48
Tool Magazine
Capacity		24/30
Max tool diameter(BT40)	mm	80/150
Max tool diameter(BT50)	mm	110/200
Max tool length	mm	350
Max tool weight	kg	8/15(Opt.25)
Accuracy (VDI 3441)
X/Y/Z positioning	mm	0.008
X/Y/Z repeatability	mm	0.004

Standard Features

• SIEMENS 828D CNC Control	• 10.4" LCD Color Display
• 17KW Spindle Motor	• 8,000 RPM Spindle
• Spindle Air Purge	• Rigid Tapping
• Chiller for Spindle and A/C Rotary Table	• A/C axes DDR Rotary Table
• 48/48/48m/min Rapid Speed	• 24 Pocket Arm ATC
• Flood Coolant & 3Mpa Through Spindle Coolant	• Chip Conveyor System + Chip Bucket
• Full Enclosure	• Raised Height of the Column by 300mm
• Work Light and Three Color Tower Light	• Automatic Lubrication

Part Cases

NT has successfully manufactured components for the automotive industry. Below are our successful component application cases.

Cylinder Block
Mechanical Housing
Steering Knuckle
Turbine Impeller
