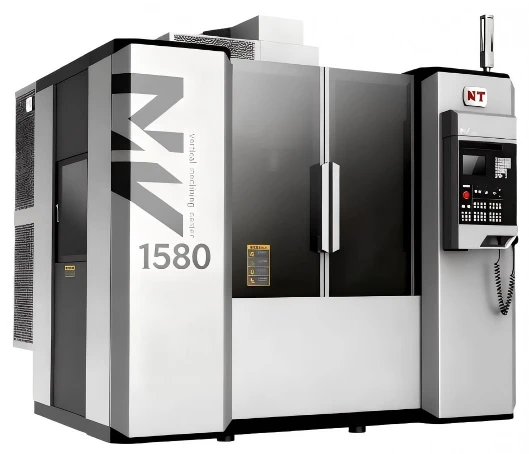

NV-1580 Standard Machine Specification
|
Item |
unit |
NV1580 |
|
Stroke (customizable) |
|
|
|
X/Y/Z Axis |
mm |
1550x800x800 |
|
Spindle nose to table |
mm |
120-920 |
|
Spindle center to column |
mm |
900 |
|
Table |
|
|
|
Table Size |
mm |
1700x800 |
|
Table load Capacity |
kg |
1600 |
|
Spindle |
|
|
|
Spindle Type |
|
BT50 |
|
Spindle max speed |
rpm |
6000 |
|
Spindle Power(BT40) |
KW |
|
|
Spindle Power (BT50) |
Kw |
15/18.5 |
|
Feedrate |
|
|
|
X/Y/Z axes rapid |
m/min |
30/30/24 |
|
X/Y/Z axes rapid (option) |
m/min |
|
|
Tool Magazine |
|
|
|
Capacity |
|
24/30 |
|
Max tool diameter(BT40) |
mm |
|
|
Max tool diameter(BT50) |
mm |
110/200 |
|
Max tool length |
mm |
350 |
|
Max tool weight |
kg |
15(opt25) |
|
Accuracy |
|
|
|
X/Y/Z positioning |
mm |
0.012 |
|
X/Y/Z repeatability |
mm |
0.006 |
Features
Heavy-duty machine frame structure
The NV1580 CNC vertical machining center features axis travels of 1550×800×800mm and a 1700×800mm worktable with maximum load capacity of 1600kg, perfectly suited for machining medium and large-sized workpieces. The adjustable distance from worktable to spindle nose ranges 120mm–920mm, and the spindle center-to-column distance is 900mm, maximizing usable travel and providing great fixture flexibility for large-part machining.
High-torque BT50 spindle unit
This machine comes standard with BT50 spindle, max spindle speed 6000rpm, rated power 15/18.5kW with powerful torque output. It accommodates large cutters up to 200mm in diameter; standard tool weight limit is 15kg, with 25kg heavy-duty tool load as optional upgrade. It sustains stable cutting performance and consistent operation during heavy stock removal roughing.
High cycle efficiency for mass production lines
Rapid traverse rates of X/Y/Z axes are 30/30/24 m/min, a medium-high speed standard among vertical machining centers of equivalent size, with high-speed traverse option available. The automatic tool changer offers 24 or 30 tool positions, max tool length 350mm, standard tool weight limit 15kg (25kg optional). Equipped with adjacent tool station detection and large-diameter cutter change logic-200mm max cutter diameter when adjacent position is left empty-ideal for multi-operation integrated machining.
Stable repeatability
The X/Y/Z axis positioning accuracy of NV1580 is within 0.012mm, with repeatability up to 0.006mm, satisfying strict precision requirements for industrial component manufacturing. This outstanding precision is guaranteed by ball screw drive, full closed-loop encoder control and spindle constant-temperature cooling system, which effectively restrain thermal displacement and backlash accumulation over long-term operation.
