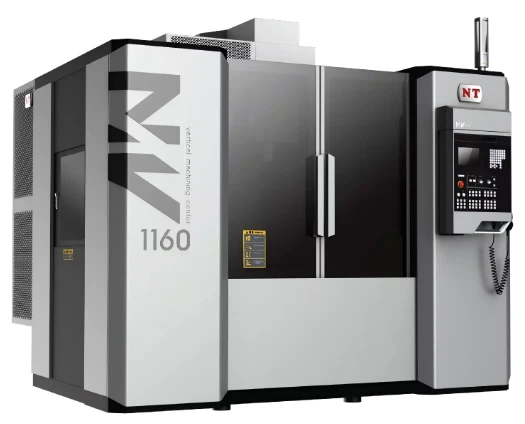

NV1160 CNC Vertical Milling Machining Center

The NV1160 vertical machining center delivers outstanding structural stability paired with versatile machining capabilities. Boasting exceptional mechanical rigidity and consistent high-accuracy performance, this machine is perfectly tailored for multi-variety production runs in small and medium lot sizes. An optional twin-spindle configuration can effectively slash cycle time by half, rendering this model an ideal equipment solution for high-volume manufacturing of automotive components and general mechanical workpieces.

Product Introduction

Standard Features

SIEMENS 828D CNC control	24 pocket Arm ATC
10,000 RPM spindle	11/15KW spindle motor
Spindle Air Purge	10.4" LCD color display
Full Enclosure	Automatic lubrication
Flood coolant	36/36/36m/min rapid traverse rate
Work light	Rigid tapping
Three colour alarm lamp

NV1160 Technical Data

Item	Unit	NV1160
Stroke(customizable)
X/Y/Z axis	mm	1100x600x600
Spindle nose to table	mm	135-735
Spindle center to column	mm	650
Table
Table size	mm	1200x600
Table load capacity	kg	900
Spindle
Spindle max speed	rpm	10000/8000
Feedrate
X/Y/Z axes rapid	m/min	36/36/36
Tool Magazine
Capacity		24
Max tool length	mm	300
Max tool weight	kg	7
Accuracy (VDI 3441)
X/Y/Z positioning	mm	0.008
X/Y/Z repeatability	mm	0.004
