FEATURES
Supports large-size workpiece processing with high loads
This series of equipment is equipped with a high-strength worktable, supporting a maximum size of 1700×1300mm (model NTH1680), with a load capacity of up to 3000kg, suitable for stable clamping and multi-faceted processing of large-size heavy parts. The large table structure plus the long axial travel (maximum X-axis 1600mm, Y-axis 1500mm, Z-axis 800mm) enables the main processing surface of most complex parts to be completed in one clamping.
High speed and high power output capability

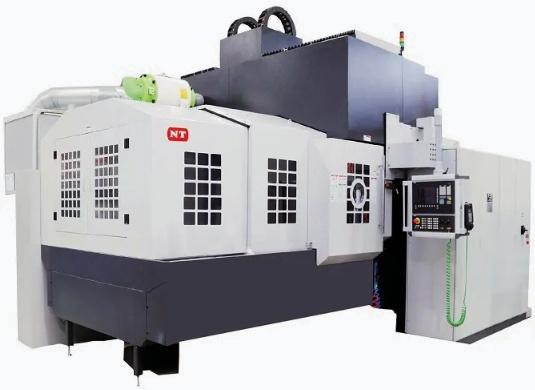

The 3 Axis Gantry Machining Center is equipped with an HSK A63 spindle interface, with a maximum speed of 10,000 rpm (optionally 20,000 rpm), and a spindle power of 22/26 kW, which has strong heavy cutting capabilities. The spindle adopts a large-diameter ceramic bearing structure, combined with an oil-gas lubrication system and an internal spindle cooling structure to achieve high speed and high stability compatibility.
SPECIFICATION
| Item | Unit | NTH1250 | NTH1680 |
X/Y/Z axis
| mm
| 1200*1200*500
| 1600*1500*800
|
Table size
| mm
| 1300x1250
| 1700x1300
|
Table load capacity
| kg
| 1500
| 3000
|
| Spindle | |||
Spindle type
| HSK A63
| HSK A63
| |
Spindle max speed
| rpm
| 10000
| 10000
|
Spindle max speed(optional)
| rpm
| 20000
| 20000
|
Spindle power
| Kw
| 22/26
| 22/26
|
| Feedrate | |||
X/Y/Z axis rapid
| m/min
| 30
| 30
|
| Tool Magazine | |||
Capacity
| 24/30/40
| 24/30/40
| |
Max tool diameter
| mm
| 80/150
| 80/150
|
Max tool length
| mm
| 300
| 300
|
Max tool weight
| kg
| 8
| 8
|
| Accuracy (VDI 3441) | |||
X/Y/Z positioning
| mm
| 0.004
| 0.004
|
X/Y/Z repeatability
| mm
| 0.002
| 0.002
|
